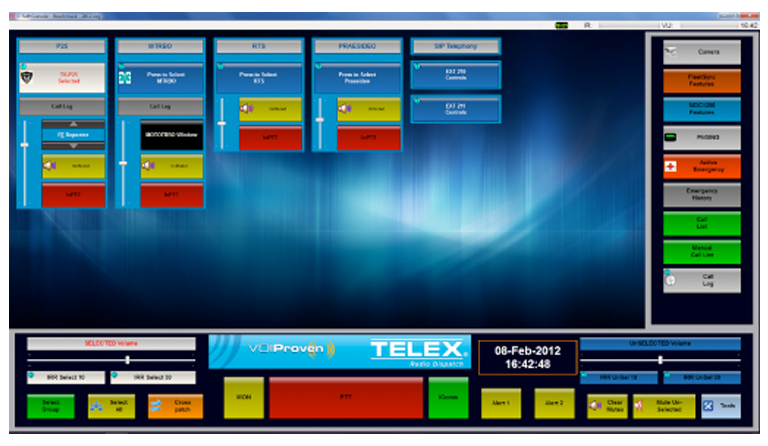

C-SOFT
C-soft is the industry’s most flexible and capable software dispatch console and is the perfect application for any dispatch environment.
C-Soft delivers all of the dispatch capabilities you expect while also giving you the flexibility that only an IP-based software console can provide: simple and quick deployment in the field, easy back-up of communications assets, and the ability to save multiple configurations on a single computer. This proven application has been deployed in communication centers around the world in applications from 911 dispatch to mobile command centers and transportation management.
SCALABLE SOLUTIONS
Telex C-Soft dispatch consoles are scalable to meet your current requirements, as well as grow to meet your future demands.
HIGHLY CONFIGURABLE
The C-Soft console is designed to meet your operational requirements. Operator screens can be designed and set up to accommodate and adapt to the way your organization communicates.
EASY TO OPERATE
C-Soft’s intuitive design makes it extremely user friendly and easy to learn and operate.
- Paging Multiple formats supported, Quickcall II in both the 100 and 1000 group formats, DTMF, Knox, 5/6 tone, and manual frequency
- Alert Tones Steady, Pulsed and High-Low Warble with frequency and duration programmable
- Programmed Group & Mute For both Group and Mute functions, lines can be selectively included within these programmed buttons allowing for instant access to particular lines of interest
- Status Indicators 24-hour Clock, VU Meter, PTT Indication, and Instant Recall Recorder
- Audio Interfacing ADHB-4 and ADHB-4 Gen 2 allow for a variety of headsets, desktop microphones, NENA phone, footswitch, and up to six speakers
- SIP Telephony Crosspatch, DTMF hold, call history, phone directory, stun and proxy server. Provides audio adjustment with silence detection and jitter buffering, Able to specify IP address for SIP connections. 2 lines included, expandable to 6 or 12 lines.
- Vocoder Types High and low bandwidth vocoders assignable on a per-line basis
- Over the Air Interfaces (via IP-224) MOTOTRBO™, Motorola Smartnet/Smartzone, NEXEDGE, IDAS, Tetra, P25 DFSI, and DMR
- Number of lines 2 to 200 depending on configuration purchased
- Direct IP Interfaces (optional) P25 DFSI, P25 CSSI, DMR - AIS, and NEXEDGE
- User Interface User-controlled look and feel using included design and configuration software
- Intercom Yes, between consoles
- DTMF Keys Full 16-key keyboard
